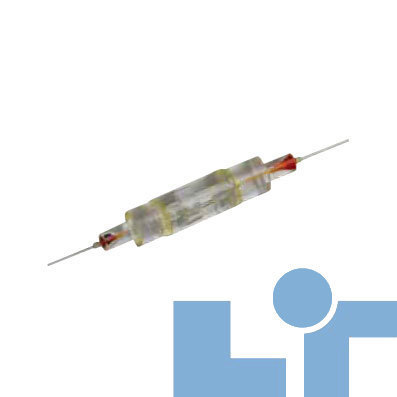

WDM 三端口器件
Features 特性
Low Insertion Loss
High Channel Isolation
Epoxy-Free in Optical Path
Telcordia Compliant
High Reliability
Applications 應用
Add/Drop System
DWDM System
CATV System
|
Parmeter |
Spec |
Unit |
|
|
Operating Wavelength |
1260~1620 |
nm |
|
|
Transmit Band Wavelength (RF-Overlay) |
1550~1560 |
nm |
|
|
ReflectBand Wavelength |
GPON |
1290~1330&1480~1500 |
nm |
|
XGSPON |
1260~1280&1574~1580 |
nm |
|
|
Insertion Loss |
Transmission |
≤1.0 |
dB |
|
Refection |
≤0.8 |
dB |
|
|
PDL |
≤0.1 |
dB |
|
|
Transmission Isolation Transmission Isolation |
≥30 |
dB |
|
|
Reflection Isolation |
|
≥15 |
dB |
|
Directivity |
|
≥50 |
dB |
|
RetumLoss |
|
≥45 |
dB |
|
Fiber Type |
|
Corning G657A1 bare fiber with 900um Loose Tube |
|
|
Fiber length |
|
1.0 |
m |
|
Connector Type |
|
SC/UPC |
|
|
Max Power Handling |
|
500 |
mW |
|
Package Dimension |
|
5.5 x 40(max) |
mm |
關鍵詞：透鏡，光纖準直器，端口器件
所屬分類：
產品描述
Features 特性
Low Insertion Loss
High Channel Isolation
Epoxy-Free in Optical Path
Telcordia Compliant
High Reliability
Applications 應用
Add/Drop System
DWDM System
CATV System
|
Parmeter |
Spec |
Unit |
|
|
Operating Wavelength |
1260~1620 |
nm |
|
|
Transmit Band Wavelength (RF-Overlay) |
1550~1560 |
nm |
|
|
ReflectBand Wavelength |
GPON |
1290~1330&1480~1500 |
nm |
|
XGSPON |
1260~1280&1574~1580 |
nm |
|
|
Insertion Loss |
Transmission |
≤1.0 |
dB |
|
Refection |
≤0.8 |
dB |
|
|
PDL |
≤0.1 |
dB |
|
|
Transmission Isolation Transmission Isolation |
≥30 |
dB |
|
|
Reflection Isolation |
|
≥15 |
dB |
|
Directivity |
|
≥50 |
dB |
|
RetumLoss |
|
≥45 |
dB |
|
Fiber Type |
|
Corning G657A1 bare fiber with 900um Loose Tube |
|
|
Fiber length |
|
1.0 |
m |
|
Connector Type |
|
SC/UPC |
|
|
Max Power Handling |
|
500 |
mW |
|
Package Dimension |
|
5.5 x 40(max) |
mm |
