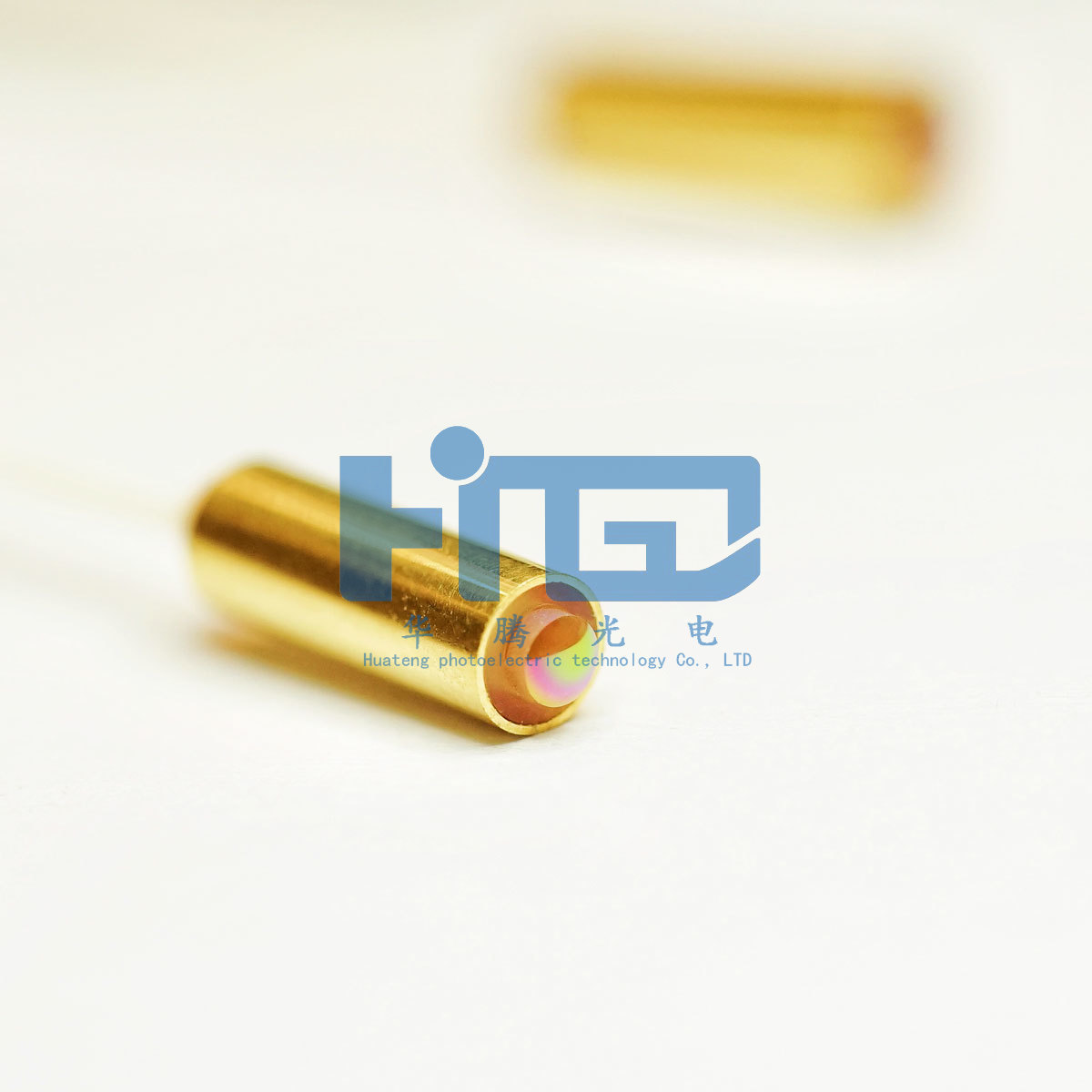

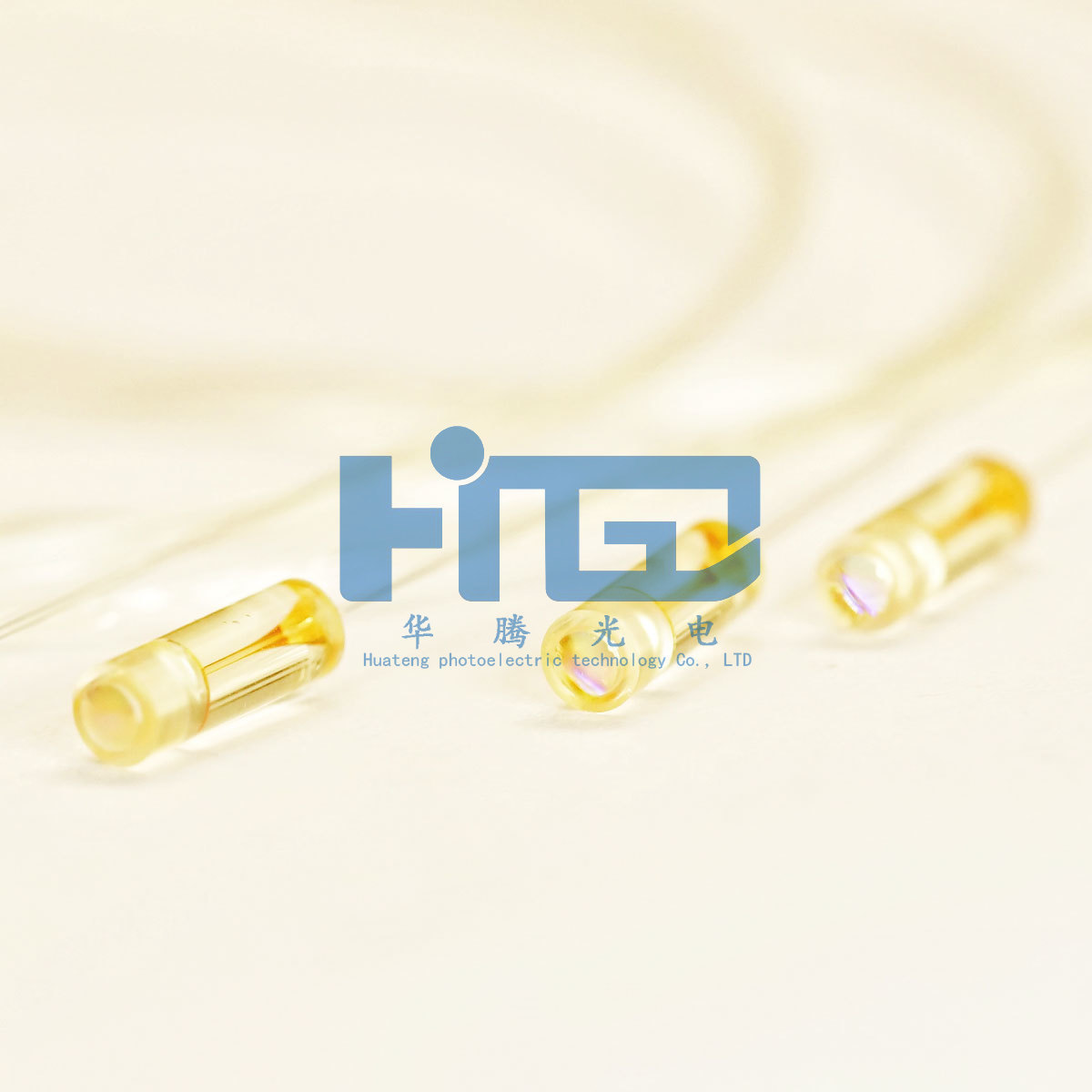

Collimator 光纖準直器
光纖準直器主要應用于光纖實驗室，激光束準直，通信系統，光纖到光纖耦合等，準直器具有低插損、高回?fù)p、高穩定性和可靠性的特點。
Features 特性
Low insertion loss
Excellent return loss
Compact size /Mini Size
High Stability and reliability
Customer Design Avalilable
Applications 應用
Optical Devices
Fiber Optic sensors
Test and Measurement Systems
Signal Processing
Optical Switches
Optical waveguides
Light Focusing Applications
Circulator
Interleaver
3-port WDM 3-port
|
Item |
Unit |
Parameters |
|||||||
|
Lens OD |
mm |
1.8 |
2.8 |
1.0 |
|||||
|
Wavelength |
nm |
1310 or 1550 (or according to customer’s specific) |
|||||||
|
Package Diameter(OD) |
mm |
2.8+0.1(without metal tube) |
1.3+0.1(with metal tube) |
||||||
|
3.2+0.1(with metal tube) |
1.8+0.1(with metal tube) |
||||||||
|
Package Length |
mm |
10+0.1,9+0.1 |
8+0.1,9+0.1 |
||||||
|
Working Distance |
mm |
≤70 |
70≤WD≤100 |
100≤WD≤300 |
WD≥300 |
≤50 |
50≤WD≤100 |
100≤WD≤200 |
|
|
Insertion Loss (max.) |
dB |
≤0.2 |
≤0.4 |
≤0.5 |
≤0.85 |
≤0.25 |
≤0.4 |
≤0.50 |
|
|
Return Loss(Min.) |
dB |
≥62 |
≥60 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
|
|
Beam Angle |
Deg. |
≤1 |
|||||||
|
Fiber Type |
mm |
Bear SMF-28e+ or 0.9 |
Bear SMF-28e+ or 0.9 |
||||||
|
Fiber Length |
m |
2.0 (Standard) |
2.0 (Standard) |
||||||
|
Operating Temperature |
℃ |
-5~75 |
|||||||
|
Storage Temperature |
℃ |
-40~85 |
|||||||
|
Optical Power Handing |
mw |
＜500 |
|||||||
關鍵詞：透鏡，光纖準直器，端口器件
所屬分類：
上一頁
下一頁
產品描述
光纖準直器主要應用于光纖實驗室，激光束準直，通信系統，光纖到光纖耦合等，準直器具有低插損、高回?fù)p、高穩定性和可靠性的特點。
Features 特性
Low insertion loss
Excellent return loss
Compact size /Mini Size
High Stability and reliability
Customer Design Avalilable
Applications 應用
Optical Devices
Fiber Optic sensors
Test and Measurement Systems
Signal Processing
Optical Switches
Optical waveguides
Light Focusing Applications
Circulator
Interleaver
3-port WDM 3-port
|
Item |
Unit |
Parameters |
|||||||
|
Lens OD |
mm |
1.8 |
2.8 |
1.0 |
|||||
|
Wavelength |
nm |
1310 or 1550 (or according to customer’s specific) |
|||||||
|
Package Diameter(OD) |
mm |
2.8+0.1(without metal tube) |
1.3+0.1(with metal tube) |
||||||
|
3.2+0.1(with metal tube) |
1.8+0.1(with metal tube) |
||||||||
|
Package Length |
mm |
10+0.1,9+0.1 |
8+0.1,9+0.1 |
||||||
|
Working Distance |
mm |
≤70 |
70≤WD≤100 |
100≤WD≤300 |
WD≥300 |
≤50 |
50≤WD≤100 |
100≤WD≤200 |
|
|
Insertion Loss (max.) |
dB |
≤0.2 |
≤0.4 |
≤0.5 |
≤0.85 |
≤0.25 |
≤0.4 |
≤0.50 |
|
|
Return Loss(Min.) |
dB |
≥62 |
≥60 |
≥55 |
≥55 |
≥55 |
≥55 |
≥55 |
|
|
Beam Angle |
Deg. |
≤1 |
|||||||
|
Fiber Type |
mm |
Bear SMF-28e+ or 0.9 |
Bear SMF-28e+ or 0.9 |
||||||
|
Fiber Length |
m |
2.0 (Standard) |
2.0 (Standard) |
||||||
|
Operating Temperature |
℃ |
-5~75 |
|||||||
|
Storage Temperature |
℃ |
-40~85 |
|||||||
|
Optical Power Handing |
mw |
＜500 |
|||||||
